China motorgeneratoren SDEC-generatoren tot 800 kW voor ononderbroken stroomvoorziening

Contacteer me voor vrije steekproeven en coupons.
WhatsAppen:0086 18588475571
wechatten: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xType | Open, stil, superstil, type aanhangwagen | Motormerk | SDEC |
---|---|---|---|
Frequentie | 50Hz / 60Hz | Motorcilinder | 4, 6, 12, 16 Cylinder water gekoeld |
Alternator | AC-borstelloos type | Optieapparatuur | ATS, waterverwarmer, geïntegreerde brandstoftank |
Controller | DEIF / DEEPSEA / Smartgen / ComAp / Tengen | Vermogensbereik | 9 kW tot 800 kW |
Markeren | China SDEC Generators,Ononderbroken stroomvoorziening SDEC-generatoren,800 kW SDEC-generatoren |

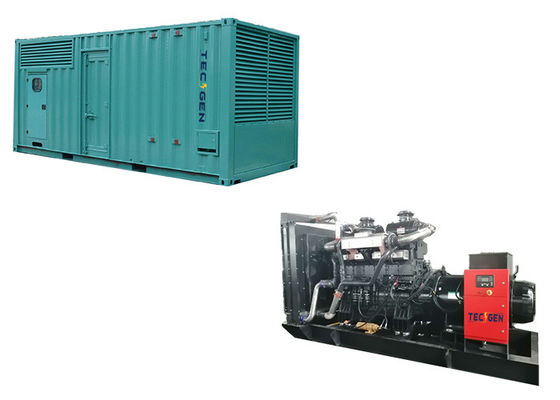

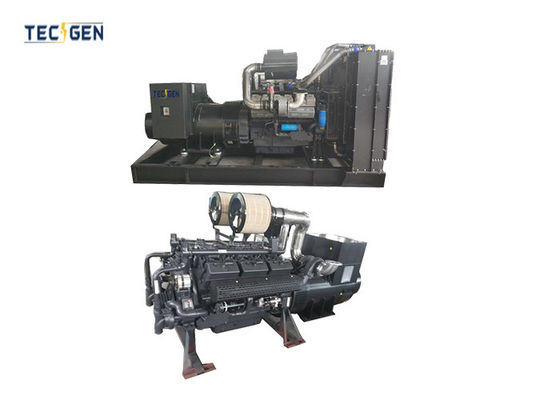

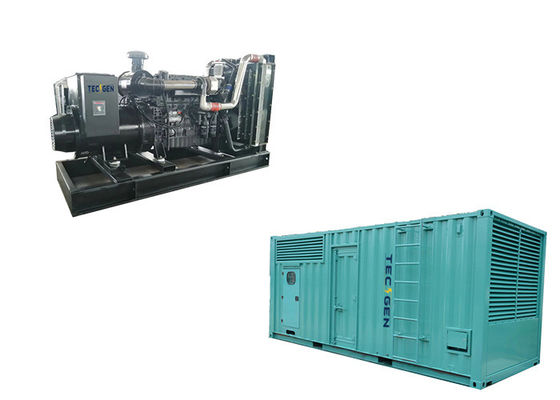

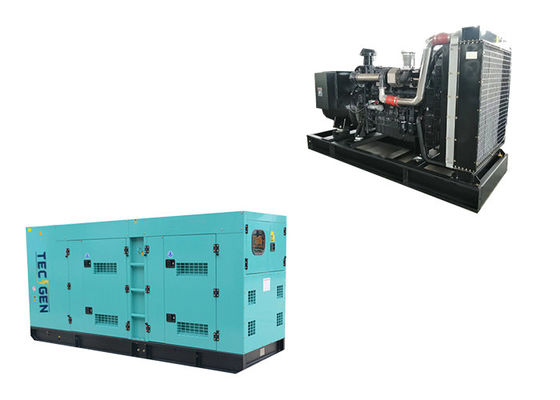

Chinese motorgeneratoren SDEC-generatoren tot 800 kW voor ononderbroken stroomvoorziening
Standaard configuratie
∧ Gegalvaniseerde stalen luifel met verbeterde duurzaamheid
∧ Brandstoftank of geïntegreerde brandstoftank voor langdurig gebruik
∧ Geavanceerd configuratiescherm met gebruiksvriendelijke interface
∧ CHNT-stroomonderbreker voor betrouwbare stroombeveiliging
∧ DEIF-controller als standaard voor precisiecontrole
∧ Batterij en batterijlader voor ononderbroken stroomvoorziening
∧ Efficiënte uitlaatdemper voor verminderde geluidsemissie
∧ Duurzame uitlaatpijp voor soepele werking
∧ LED-licht voor zichtbaarheid bij weinig licht
∧ Noodknop voor snelle uitschakeling in geval van nood
∧ Schuim met hoge dichtheid en een dikte van 4 lagen voor superieure geluidsisolatie
∧ Plastic membraan en 4 schokbestendige pads voor verbeterde bescherming
∧ Uitgebreide handleidingen voor eenvoudige bediening en onderhoud
∧ Snelle levering binnen 10-25 dagen
∧ Eén jaar garantie voor gemoedsrust
∧ Uitzonderlijk stil geluidsniveau van 63-75 dB op een afstand van 7 meter
Chinese dieselmotorgenerator - SDEC-serie generatoren Vermogensbereiken:
FUNCTIE Vermogensbereik: 8KW-800KW (10KVA-1000KVA) Model: open type / stil type / superstil type Motor: SDEC Toerental: 1500/1800 tpm Dynamo: Stamford/Leroy Somer/Marathon/Mecc Alte/TG IP- en isolatieklasse: IP22-23 en F/H Frequentie: 50/60 Hz Verwerkingsverantwoordelijke: Deepsea/Smartgen/DEIF/Comap/Mebay/DATAKOM/Anderen ATS-systeem: AISIKAI/anderen |
||||||||||||
SDEC-serie | ||||||||||||
Technische specificatie van de dieselgeneratorset (50 Hz) | ||||||||||||
Genset-model | Genset Eerste macht |
Genset Stand-by-vermogen |
Motor model | Motor Maximum kracht |
Cilinders | Gouverneur | Alternatormodel | Brandstofverbruik | Afmeting (LxBxH) mm | |||
KVA | kW | KVA | kW | kW | L/H | Open type | Stille soort | |||||
TG11SD | 10 | 8 | 11 | 9 | 3Z1.1-G42 | 11 | 3L | Elektrisch | TGI164S8 | 2.8 | 1100x500x750 | 1400x750x750 |
TG14SD | 13 | 10 | 14 | 11 | 3ZT1.1-G42 | 14 | 3L | Elektrisch | TGI164S10 | 3.4 | 1100x500x750 | 1400x750x750 |
TG17SD | 15 | 12 | 17 | 13 | 4Z2.3-G11 | 18 | 4L | Mechanisch | TGI164S12 | 4.5 | 1400x650x860 | 1800x750x860 |
TG22SD | 20 | 16 | 22 | 18 | 4Z2.7-G11 | 24 | 4L | Mechanisch | TGI184S16 | 5.8 | 1500x650x860 | 1900x750x860 |
TG28SD | 25 | 20 | 28 | 22 | 4Z3.0-G11 | 30 | 4L | Mechanisch | TGI184S20 | 7.2 | 1600x650x860 | 2000x750x860 |
TG34SD | 31 | 25 | 34 | 28 | 4Z3.2-G11 | 35 | 4L | Mechanisch | TGI184S25 | 8.5 | 1600x750x1100 | 2000x850x1120 |
TG41SD | 38 | 30 | 41 | 33 | 4ZT3.2-G11 | 44 | 4L | Mechanisch | TGI184S30 | 9.8 | 1600x750x1100 | 2000x850x1120 |
TG55SD | 50 | 40 | 55 | 44 | 4ZT3.5-G21 | 54 | 4L | Elektrisch | TGI224S40 | 12.0 | 1700x750x1100 | 2100x850x1120 |
TG69SD | 63 | 50 | 69 | 55 | 4ZT4.1-G21 | 66 | 4L | Elektrisch | TGI224S50 | 15.0 | 1900x750x1100 | 2300x900x1120 |
TG76SD | 69 | 55 | 76 | 61 | 4ZTAA4.1-G21 | 70 | 4L | Elektrisch | TGI224S55 | 16.0 | 1900x750x1100 | 2300x900x1120 |
TG83SD | 75 | 60 | 83 | 66 | 4ZTAA4.1-G31 | 81 | 4L | Elektrisch | TGI224S60 | 18.0 | 1950x750x1100 | 2300x900x1120 |
TG69SD | 63 | 50 | 69 | 55 | SC4H95D2 | 68 | 4L | Elektrisch | TGI224S50 | 15.0 | 1900x750x1100 | 2300x900x1120 |
TG88SD | 80 | 64 | 88 | 70 | SC4H115D2 | 86 | 4L | Elektrisch | TGI224S64 | 19.5 | 1950x750x1100 | 2300x900x1120 |
TG110SD | 100 | 80 | 110 | 88 | SC4H140D2 | 105 | 4L | Elektrisch | TGI274S80 | 22.0 | 1980x970x1185 | 2600x1050x1500 |
TG127SD | 115 | 92 | 127 | 101 | SC4H160D2 | 116 | 4L | Elektrisch | TGI274S92 | 24.0 | 1980x970x1185 | 2600x1050x1500 |
TG138SD | 125 | 100 | 138 | 110 | SC4H180D2 | 132 | 4L | Elektrisch | TGI274S100 | 28.0 | 2410x940x1400 | 2700x1050x1500 |
TG165SD | 150 | 120 | 165 | 132 | SC7H205D2 | 152 | 6L | Elektrisch | TGI274S120 | 32,0 | 2410x940x1400 | 3200x1100x1700 |
TG179SD | 163 | 130 | 179 | 143 | SC7H220D2 | 165 | 6L | Elektrisch | TGI274S130 | 34,0 | 2410x940x1400 | 3200x1100x1700 |
TG206SD | 188 | 150 | 206 | 165 | SC7H250D2 | 185 | 6L | Elektrisch | TGI274S150 | 39,0 | 2410x940x1400 | 3200x1100x1700 |
TG220SD | 200 | 160 | 220 | 176 | SC8D280D2 | 204 | 6L | Elektrisch | TGI274S160 | 44,0 | 2490x1080x1630 | 3400x1300x1700 |
TG248SD | 225 | 180 | 248 | 198 | SC9D310D2 | 228 | 6L | Elektrisch | TGI274S180 | 49,0 | 2490x1080x1630 | 3500x1300x1800 |
TG275SD | 250 | 200 | 275 | 220 | SC9D340D2 | 255 | 6L | Elektrisch | TGI274S200 | 53,0 | 2540x1100x1630 | 3500x1300x1800 |
TG303SD | 275 | 220 | 303 | 242 | SC10E380D2 | 280 | 6L | Elektrisch | TGI314S220 | 58,0 | 3070x1100x1630 | 3800x1600x2050 |
TG344SD | 313 | 250 | 344 | 275 | SC12E420D2 | 308 | 6L | Elektrisch | TGI314S250 | 63,0 | 3070x1100x1630 | 3900x1600x2050 |
TG385SD | 350 | 280 | 385 | 308 | SC12E460D2 | 338 | 6L | Elektrisch | TGI314S280 | 69,0 | 3070x1100x1630 | 3900x1600x2050 |
TG399SD | 363 | 290 | 399 | 319 | SC12E480D2 | 355 | 6L | Elektrisch | TGI314S290 | 73,0 | 3070x1100x1630 | 4000x1600x2050 |
TG413SD | 375 | 300 | 413 | 330 | SC13E500D2 | 373 | 6L | Elektrisch | TGI314S300 | 76,0 | 3070x1100x1630 | 4000x1600x2050 |
TG440SD | 400 | 320 | 440 | 352 | SC13E550D2 | 405 | 6L | Elektrisch | TGI314S320 | 82,0 | 3070x1100x1630 | 4000x1600x2050 |
TG344SD | 313 | 250 | 344 | 275 | SC13G420D2 | 308 | 6L | Elektrisch | TGI314S250 | 63,0 | 3070x1100x1630 | 3900x1600x2050 |
TG413SD | 375 | 300 | 413 | 330 | SC15G500D2 | 373 | 6L | Elektrisch | TGI314S300 | 76,0 | 3070x1100x1630 | 4000x1600x2050 |
TG495SD | 450 | 360 | 495 | 396 | SC25G610D2 | 446 | 12V | Elektrisch | TGI354S360 | 98,0 | 3450x1400x1990 | 4500x1600x2250 |
TG550SD | 500 | 400 | 550 | 440 | SC25G690D2 | 505 | 12V | Elektrisch | TGI354S400 | 111,0 | 3550x1400x1990 | 4500x1600x2250 |
TG619SD | 563 | 450 | 619 | 495 | SC27G755D2 | 560 | 12V | Elektrisch | TGI354S450 | 122,0 | 3550x1400x1990 | 4500x1600x2250 |
TG688SD | 625 | 500 | 688 | 550 | SC27G830D2 | 610 | 12V | Elektrisch | TGI354S500 | 135,0 | 3550x1400x1990 | 4500x1600x2250 |
TG756SD | 688 | 550 | 756 | 605 | SC27G900D2 | 662 | 12V | Elektrisch | TGI354S550 | 145,0 | 3630x1400x1990 | 4500x1600x2250 |
TG55SD | 50 | 40 | 55 | 44 | 4HTAA4.3-G31 | 56 | 4L | Elektrisch | TGI224S40 | 12.0 | 1700x750x1100 | 2100x850x1120 |
TG69SD | 63 | 50 | 69 | 55 | 4HTAA4.3-G32 | 68 | 4L | Elektrisch | TGI224S50 | 15.0 | 1900x750x1100 | 2300x900x1120 |
TG88SD | 80 | 64 | 88 | 70 | 4HTAA4.3-G33 | 86 | 4L | Elektrisch | TGI224S64 | 19.5 | 1950x750x1100 | 2300x900x1120 |
TG113SD | 105 | 84 | 113 | 90 | 4HTAA4.3-G34 | 105 | 4L | Elektrisch | TGI274S84 | 22.0 | 1980x970x1185 | 2600x1050x1500 |
TG125SD | 115 | 92 | 125 | 100 | 4HTAA4.3-G35 | 117 | 4L | Elektrisch | TGI274S92 | 24.0 | 1980x970x1185 | 2600x1050x1500 |
TG150SD | 138 | 110 | 150 | 120 | 4HTAA4.3-G36 | 140 | 4L | Elektrisch | TGI274S110 | 30.0 | 2410x940x1400 | 2700x1050x1500 |
TG150SD | 138 | 110 | 150 | 120 | 6HTAA6.5-G31 | 141 | 6L | Elektrisch | TGI274S110 | 30.0 | 2410x940x1400 | 2700x1050x1500 |
TG165SD | 150 | 120 | 165 | 132 | 6HTAA6.5-G32 | 155 | 6L | Elektrisch | TGI274S120 | 32,0 | 2410x940x1400 | 3200x1100x1700 |
TG188SD | 169 | 135 | 188 | 150 | 6HTAA6.5-G35 | 170 | 6L | Elektrisch | TGI274S135 | 35,0 | 2410x940x1400 | 3200x1100x1700 |
TG206SD | 188 | 150 | 206 | 165 | 6HTAA6.5-G33 | 185 | 6L | Elektrisch | TGI274S150 | 39,0 | 2410x940x1400 | 3200x1100x1700 |
TG225SD | 200 | 160 | 225 | 180 | 6HTAA6.5-G34 | 205 | 6L | Elektrisch | TGI274S160 | 44,0 | 2490x1080x1630 | 3400x1300x1700 |
TG225SD | 200 | 160 | 225 | 180 | 6DTAA8.9-G31 | 204 | 6L | Elektrisch | TGI274S160 | 44,0 | 2490x1080x1630 | 3400x1300x1700 |
TG250SD | 225 | 180 | 250 | 200 | 6DTAA8.9-G32 | 228 | 6L | Elektrisch | TGI274S180 | 49,0 | 2490x1080x1630 | 3500x1300x1800 |
TG275SD | 250 | 200 | 275 | 220 | 6DTAA8.9-G33 | 253 | 6L | Elektrisch | TGI274S200 | 53,0 | 2540x1100x1630 | 3500x1300x1800 |
TG313SD | 275 | 220 | 313 | 250 | 6DTAA8.9-G34 | 280 | 6L | Elektrisch | TGI314S220 | 58,0 | 3070x1100x1630 | 3800x1600x2050 |
TG350SD | 313 | 250 | 350 | 280 | 6ETAA11.8-G32 | 308 | 6L | Elektrisch | TGI314S250 | 63,0 | 3070x1100x1630 | 3900x1600x2050 |
TG375SD | 350 | 280 | 375 | 300 | 6ETAA11.8-G33 | 338 | 6L | Elektrisch | TGI314S280 | 69,0 | 3070x1100x1630 | 3900x1600x2050 |
TG413SD | 375 | 300 | 413 | 330 | 6ETAA11.8-G31 | 380 | 6L | Elektrisch | TGI314S300 | 76,0 | 3070x1100x1630 | 4000x1600x2050 |
TG450SD | 400 | 320 | 450 | 360 | 6ETAA12.8-G32 | 400 | 6L | Elektrisch | TGI314S320 | 82,0 | 3070x1100x1630 | 4000x1600x2050 |
TG500SD | 450 | 360 | 500 | 400 | 6ETAA12.8-G31 | 441 | 6L | Elektrisch | TGI354S360 | 98,0 | 3450x1400x1990 | 4500x1600x2250 |
TG550SD | 500 | 400 | 550 | 440 | 6ETAA12.8-G310 | 495 | 6L | Elektrisch | TGI354S400 | 111,0 | 3550x1400x1990 | 4500x1600x2250 |
TG563SD | 500 | 400 | 563 | 450 | 12GTAA27-G34 | 505 | 12V | Elektrisch | TGI354S400 | 111,0 | 3550x1400x1990 | 4500x1600x2250 |
TG625SD | 563 | 450 | 625 | 500 | 12GTAA27-G33 | 555 | 12V | Elektrisch | TGI354S450 | 122,0 | 3550x1400x1990 | 4500x1600x2250 |
TG688SD | 625 | 500 | 688 | 550 | 12GTAA27-G32 | 622 | 12V | Elektrisch | TGI354S500 | 135,0 | 3550x1400x1990 | 4500x1600x2250 |
TG775SD | 700 | 560 | 775 | 620 | 12GTAA27-G31 | 684 | 12V | Elektrisch | TGI354S560 | 145,0 | 3630x1400x1990 | 4500x1600x2250 |
TG563SD | 500 | 400 | 563 | 450 | 6KTAA25-G311 | 506 | 6L | Elektrisch | TGI354S400 | 111,0 | 3550x1400x1990 | 4500x1600x2250 |
TG625SD | 563 | 450 | 625 | 500 | 6KTAA25-G310 | 572 | 6L | Elektrisch | TGI354S450 | 122,0 | 3550x1400x1990 | 4500x1600x2250 |
TG688SD | 625 | 500 | 688 | 550 | 6KTAA25-G39 | 629 | 6L | Elektrisch | TGI354S500 | 135,0 | 3550x1400x1990 | 4500x1600x2250 |
TG750SD | 700 | 560 | 750 | 600 | 6KTAA25-G38 | 684 | 6L | Elektrisch | TGI354S560 | 145,0 | 3630x1400x1990 | 4500x1600x2250 |
TG563SD | 500 | 400 | 563 | 450 | 6KTAA25-G36 | 506 | 6L | Elektrisch | TGI354S400 | 111,0 | 3550x1400x1990 | 4500x1600x2250 |
TG625SD | 563 | 450 | 625 | 500 | 6KTAA25-G35 | 572 | 6L | Elektrisch | TGI354S450 | 122,0 | 3550x1400x1990 | 4500x1600x2250 |
TG688SD | 625 | 500 | 688 | 550 | 6KTAA25-G34 | 629 | 6L | Elektrisch | TGI354S500 | 135,0 | 3550x1400x1990 | 4500x1600x2250 |
TG750SD | 700 | 560 | 750 | 600 | 6KTAA25-G33 | 684 | 6L | Elektrisch | TGI354S560 | 145,0 | 3630x1400x1990 | 4500x1600x2250 |
TG825SD | 750 | 600 | 825 | 660 | 6KTAA25-G32 | 754 | 6L | Elektrisch | TGI404S600 | 155,0 | 3900x1600x2100 | 5000x2200x2450 |
TG900SD | 825 | 660 | 900 | 720 | 6KTAA25-G31 | 800 | 6L | Elektrisch | TGI404S660 | 164,0 | 4200x1600x2100 | 5000x2200x2450 |
TG1000SD | 900 | 720 | 1000 | 800 | 6KTAA25-G320 | 902 | 6L | Elektrisch | TGI404S720 | 185,0 | 4390x1600x2100 | 5600x2250x2600 |
TG1100SD | 1000 | 800 | 1100 | 880 | 6KTAA25-G321 | 968 | 6L | Elektrisch | TGI404S800 | 199,0 | 4390x1600x2100 | 5700x2250x2600 |
Optionele onderdelen
∧ Configuratieschermopties: DEIF, Smartgen, ComAp, Deep Sea voor aangepaste besturingsbehoeften
∧ Luifelopties: gladde of niet-gladde afwerking voor esthetische aantrekkingskracht
∧ Aanpasbare ontwerpopties voor luifeltype en kleur
∧ Gouverneuropties: elektrisch of mechanisch voor nauwkeurige snelheidsregeling
∧ Alternatoropties: originele Stamford-, Leroy Somer-, Meccalte- en Chinese alternatoren voor veelzijdige energieopwekking
Verpakking: Wij bieden formele exportverpakkingen aan of kunnen de verpakking aanpassen aan de specifieke eisen van de klant.
Verzending: Wij bieden verzendopties via zee, land of spoor, waarbij we de meest geschikte methode selecteren op basis van de situatie of volgens de voorkeuren van de klant.
Onze generatorsets variëren van 6 KVA tot 30.000 kVA en voldoen aan een grote verscheidenheid aan behoeften.Wij bieden open type, luifeltype, stille type, trailertype en volautomatische dieselgeneratoren.
Bovendien hebben we de mogelijkheid om onze producten aan te passen aan uw unieke eisen.Deze generatoren worden aangedreven door wereldberoemde motoren van merken als Cummins, Ricardo, SDED, Perkins, DEUTZ, FAWDE, Yangdong, Yuchai, Weichai en ISUZU.Ze worden gecombineerd met dynamo's van prestigieuze merken zoals Stamford, Meccalte en LEROY SOMER, of Chinese dynamo's.Deze combinatie zorgt voor een laag geluidsniveau, minder trillingen, moeiteloos starten en betrouwbare prestaties.
Ons verkoopteam, met 8-10 jaar ervaring in de branche, is bedreven in het aanbevelen van de meest geschikte producten op basis van uw behoeften.Ons technisch team, met 15 tot 30 jaar expertise, beschikt over uitgebreide kennis en staat altijd klaar om te helpen bij het oplossen van problemen.
Neem gerust contact met ons op wanneer u maar wilt!
